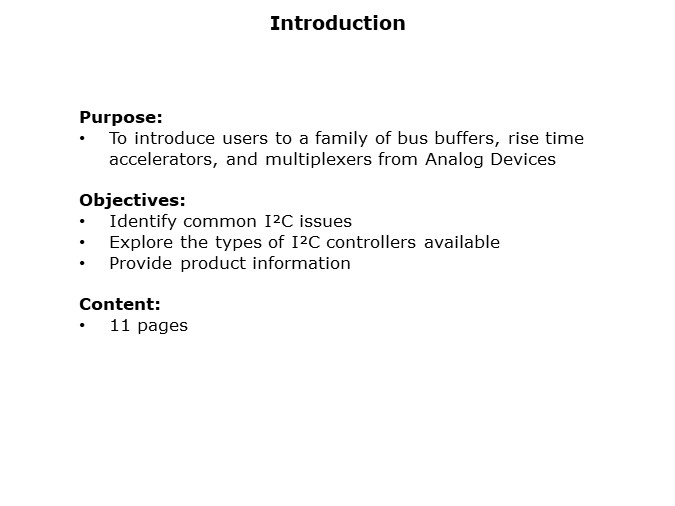

BusBuffer-Slide1

Welcome to the Analog Devices I²C Bus Buffer Family product training module. This presentation will introduce a family of bus buffers, rise time accelerators, and multiplexers that allow a user to address the most common I²C issues. It will also explain why these issues arise and what types of controllers are available. With this information, a user can reliably expand and operate the I²C bus while staying compliant with the standard.

PTM Published on: 2013-06-20
