pcb layout

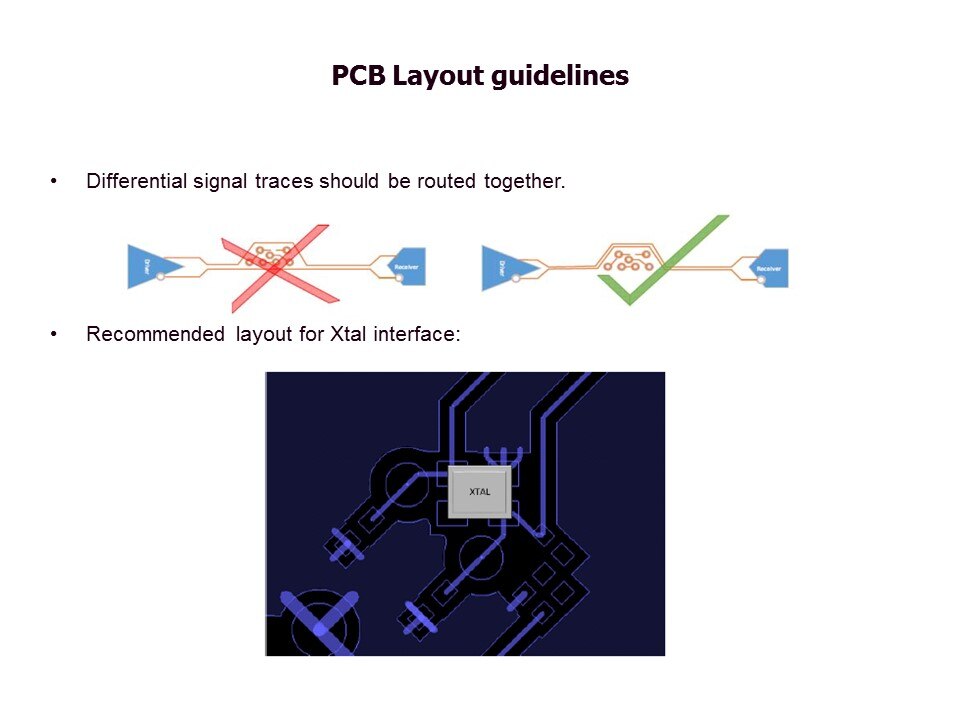

Creating the PCB layout does not pose any special difficulty. However, particular care should be given to the routing of the crystal interface. The load capacitance should be equally matched. A load mismatch will result in a frequency offset. More info can be found in the AN-909 application note mentioned previously.
