Principle

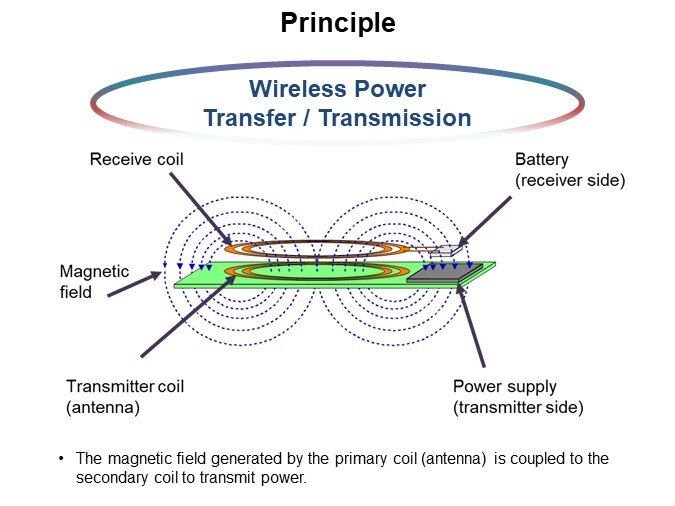

Wireless charging is a power transmission system which utilizes the flow of magnetic flux generated between two coils, the transmitter coil and receiver coil, to transmit power. The magnetic field generated by the transmitter coil (antenna) is coupled to the receiver coil to transmit power. The magnetic flux is converging in the ferrite material. If the loss of the ferrite material is large, the magnetic flux will not flow cleanly.
