EPC9201: 40A, 0 ~ 20V, Half H-Bridge Driver

Summary

This development board, measuring 11mm x 12mm, contains two enhancement mode (eGaN®) field effect transistors (FETs) arranged in a half bridge configuration with an onboard Texas Instruments LM5113 gate drive.

The purpose of these development boards is to simplify the evaluation process by optimizing the layout and including all the critical components on a single board that can be easily connected into any existing converter.

A complete block diagram of the circuit is given in Figure 1.

* Status: New Device Offered (NDO)

The GaN Experts recommend EPC2055 for new designs

NDO Note: This is an earlier generation device, and although it is fully supported, the recommended device will provide better price and performance in most applications.

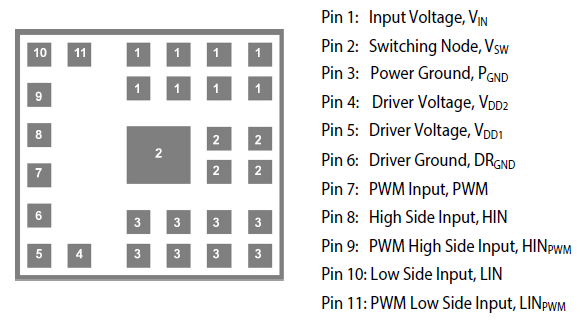

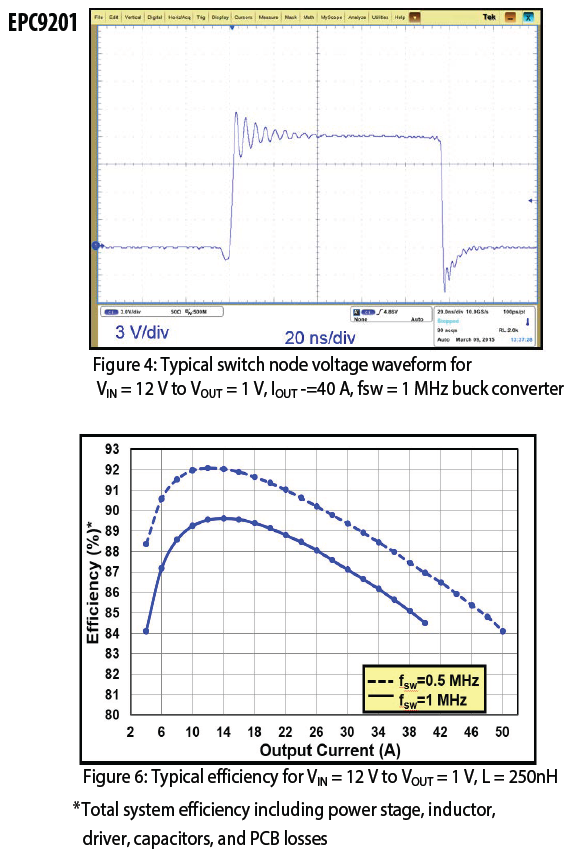

Specifications

Manufacturer	EPC
Category	Power Management
Sub-Category	Power Output Stages (H-Bridge, Half Bridge)
Eval Board Part Number	917-1049-ND
Eval Board Supplier	EPC
Eval Board	Normally In Stock
Configuration	1 Half H-Bridge
Voltage Out Range	0 ~ 20 V
Current Out	40 A
Interface	PWM, Dual PWM, Single
Features	Shoot Through Protection
Switching Frequency (Max)	1 MHz
Component Count + Extras	12 + 0
Design Author	EPC
Main I.C. Base Part	EPC2015C EPC2023
Date Created By Author
Date Added To Library	2023-11
