Versa-Slide11

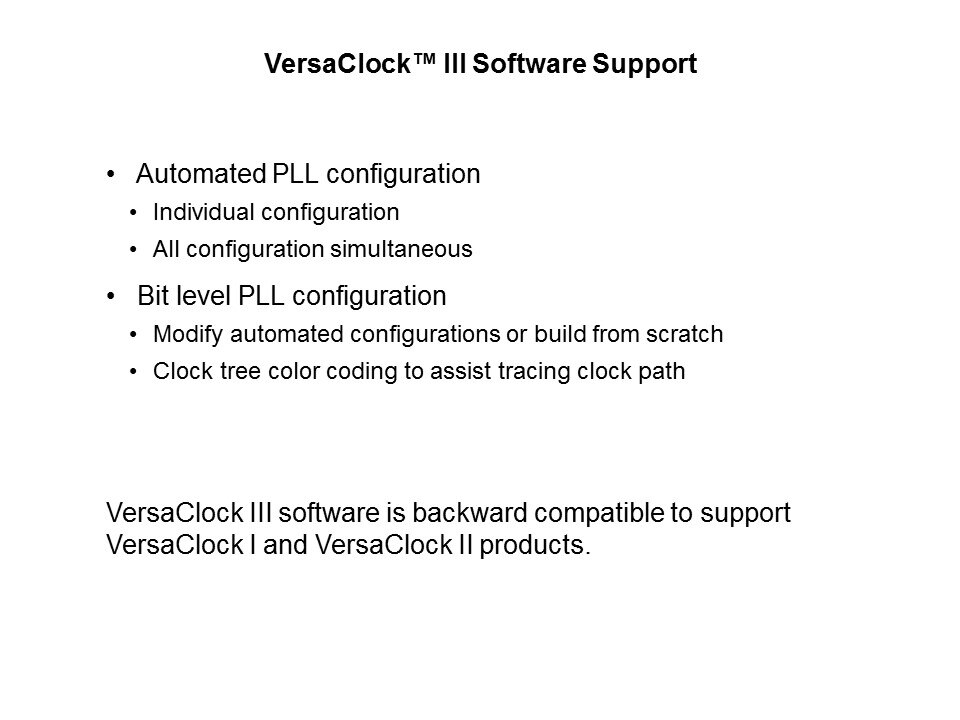

The VersaClock™ III user-friendly software is easy to navigate and defaults to an automated configuration mode where a user inputs the reference frequency, desired output frequencies, any spread spectrum control, and clicks the calculate button. The software then optimizes the internal PLL settings to provide the best performance on the desired outputs. The software also provides users the capability of bit-level programming of individual PLLs by clicking the manual configuration view. For more details on this mode, please download the Renesas software user manual on the VersaClock III website.

PTM Published on: 2011-05-31
