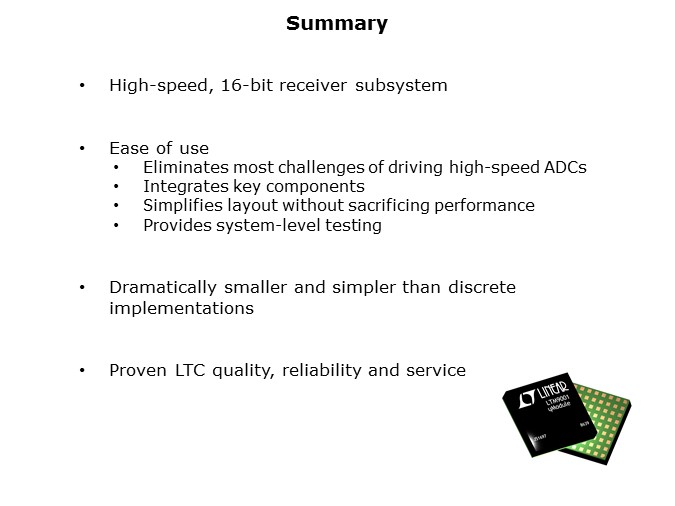

LTM9001-Slide12

In summary, the LTM9001 is a receiver subsystem that integrates a 16-bit, high-speed ADC, the driver amplifier and all of the necessary passive components for filtering and bypassing. It eliminates most of the challenges of driving high-speed ADCs; integrates the key components; simplifies the layout and provides a fully-tested solution that is much smaller than the same design implemented with discrete components.

PTM Published on: 2011-05-19
