TPS61500EVM-369: 500mA @ 15.5V Max, 2.9 ~ 15V in

Summary

The Texas Instruments TPS61500EVM-369 evaluation module contains a TPS61500 boost converter IC, supporting active and passive components, and five white light-emitting diodes (WLEDs) in series. The goal of this EVM is to facilitate evaluation of the TPS61500 in a typical WLED application.

The user’s guide includes EVM specifications, recommended test setup, test results, bill of materials, and a schematic diagram.

To aid user customization of the EVM, the board was designed with devices having 0603 or larger footprints. Actual implementations may occupy less space.

Specifications

Manufacturer Texas Instruments
Category Lighting
Sub-Category LED Drivers - DC In
Eval Board Part Number 296-28552-ND
Eval Board Supplier Texas Instruments
Eval Board Normally In Stock
Voltage In 2.9 ~ 15 V
Topology Step Up
Current Out 500 mA
Voltage Out (Max) 15.5 V
Outputs and Type 1 Non-Isolated

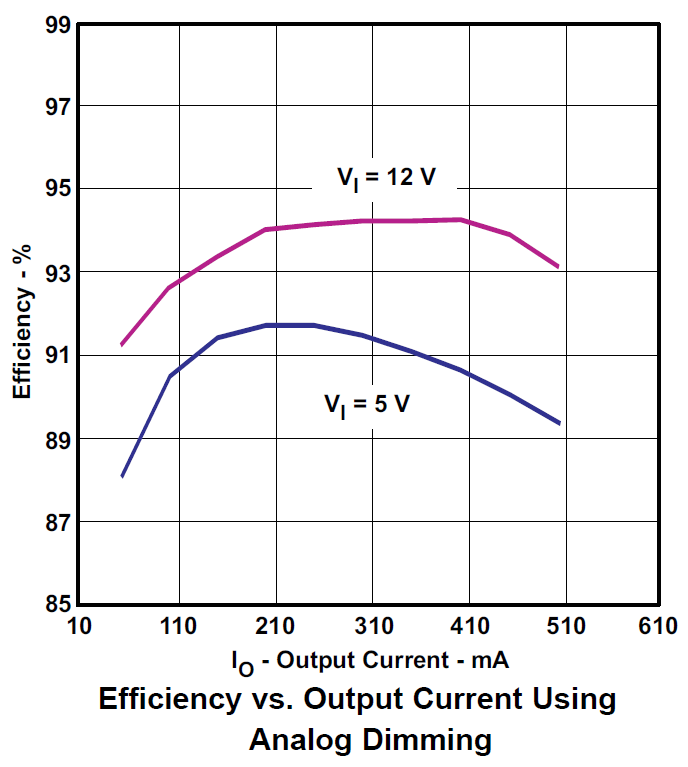

Efficiency @ Conditions >93%, 12V in @ 112 ~ 500 mA
>91%, 5V in @ 112 ~ 360 mA
Features Current Limit (Adj. or Fixed)
Dimming Control
Over Voltage Protection
PFM or PWM
Soft Start
Switching Frequency 200 kHz - 2.2 MHz
Component Count + Extras 20 + 27
Design Author Texas Instruments
Application / Target Market LCD Backlighting
LCD TV / Monitor
Lighting: LED Commercial Lighting
Lighting: LED Home Lighting
Main I.C. Base Part TPS61500
Date Created By Author 2009-01
Date Added To Library 2013-03

Eval Board

Order a fully assembled board:

Quantity Available: 0

Quantity:

Support Documents & Media

TPS61500EVM - User's Guide TPS61500 - Datasheet Ultra Librarian Software:CAD Symbols and Footprints (Zip File) TI's CAD/CAE Symbols and Footprint Search

Media

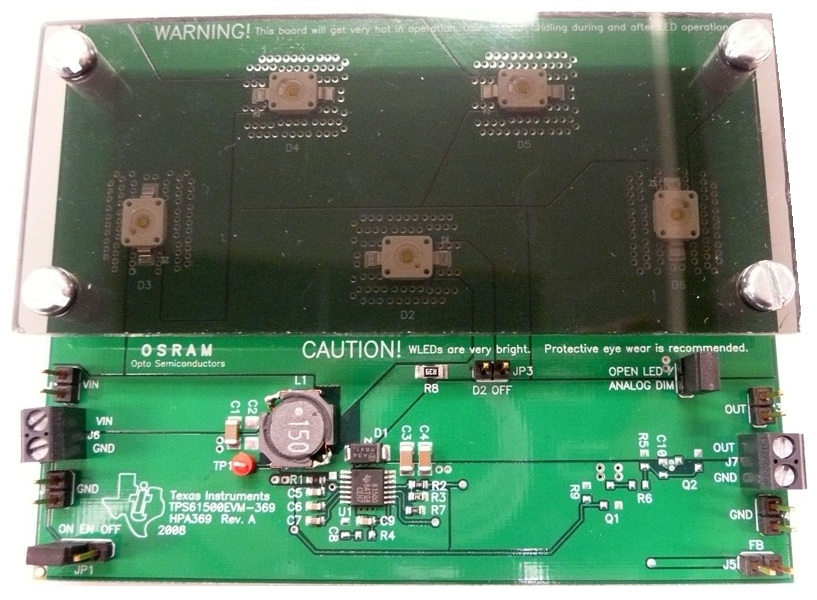

TPS61500EVM_369_Schematic_Full.png TPS61500EVM_369_Board_Full.jpg TPS61500EVM_369_Chart_Full.png
