TPS62300EVM-085/2:TPS62300YZD, 1.5V @ 500mA, 2.7 ~ 6V in

Summary

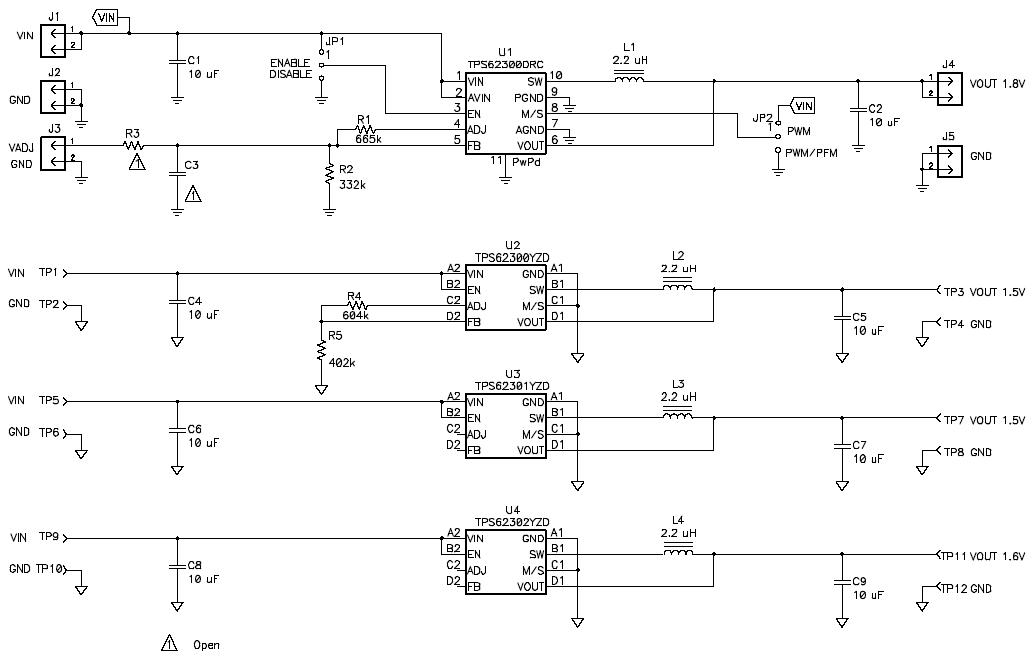

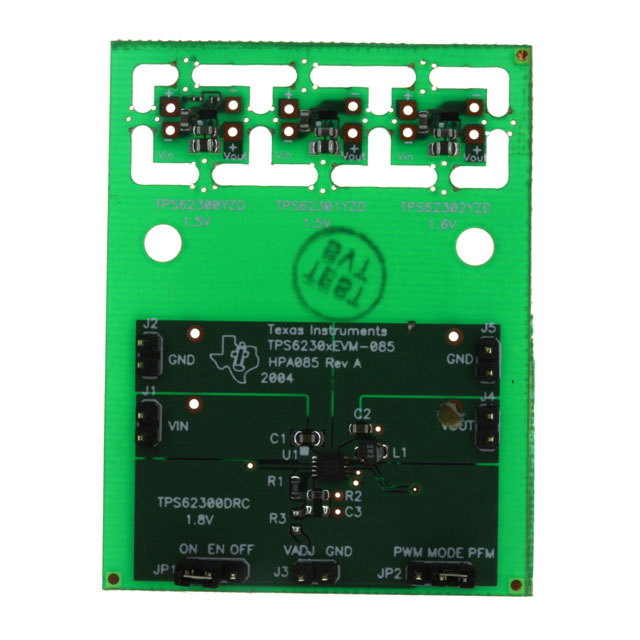

The Texas Instruments TPS6230xEVM-085 evaluation module helps designers evaluate the operation and performance of the TPS6230x family of devices. These devices are high efficiency, small size, buck converters that switch at 3 MHz.

The device is ideal for mobile phones and similar portable applications powered by a single-cell Li-Ion battery or by 3-cell NiMH/NiCd batteries. Output voltage range from 5.4 V down to 0.6 V.

In 100% duty cycle mode offer a low input-to-output voltage difference. In this mode, the P-channel MOSFET is constantly turned on. This is particularly useful in battery-powered applications to achieve the longest operation time by taking full advantage of the whole battery voltage range.

Specifications

Manufacturer	Texas Instruments
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Single Output
Eval Board Part Number	296-18981-ND
Eval Board Supplier	Texas Instruments
Eval Board	Board not Stocked
Topology	Step Down
Outputs and Type	1 Non-Isolated
Voltage Out: Factory Set	1.5 V
Current Out	500 mA
Voltage In	2.7 ~ 6 V

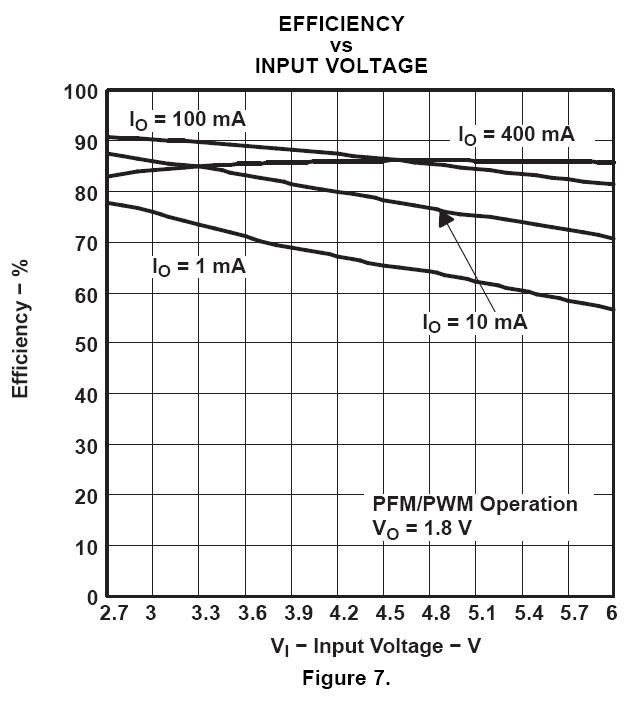

Efficiency @ Conditions	>85%, 3.6V in, 1.8V @ 20 ~ 400 mA >82%, 2.7 ~ 6V in, 1.8 @ 400 mA
Voltage Out Range
Features	Light Load Mode Short Circuit Protection Shutdown, Enable, Standby Soft Start Thermal Protection Under Voltage Protection, Brown-Out
Switching Frequency	3 MHz
Standby Current [Typical]	100 nA
Quiescent Current [Typical]	86 µA
Component Count + Extras	6 + 7
Internal Switch	Yes
Design Author	Texas Instruments
Application / Target Market	Audio: MP3 Players Cell Phones Digital Cameras Portable Devices RF / Wireless USB Powered Devices
Standby Current [Maximum]	1 µA
Quiescent Current [Maximum]	120 µA
Main I.C. Base Part	TPS62301YZD
Date Created By Author
Date Added To Library	2017-05
