The L6920DB is a high efficiency monolithic step up switching converter IC especially designed for battery powered application. (Conversion from 1 to 3 alkaline, NiMH, NiCd battery cells or 1 Li-Ion).
The minimum output voltage is 1.8V: suitable to supply the most advanced ASIC and µP.
High switching frequency allows for a low profile, small sized inductor and output capacitor to be used.
Reference voltage, low battery detection and Shutdown are provided together with over current.
| Manufacturer | STMicroelectronics |
|---|---|
| Category | AC/DC and DC/DC Conversion |
| Sub-Category | DC/DC SMPS - Single Output |

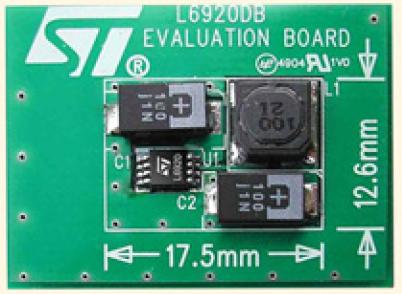

| Eval Board |
Board not Stocked
|
| Topology |
Step Up
|
| Outputs and Type |
1 Non-Isolated
|
| Voltage Out: Factory Set |
3.3 V
|
| Current Out |
250 mA
|
| Voltage In |
0.8 ~ 3.3 V
|
| Efficiency @ Conditions |
>91%, 3.6V in, 5V @ 1 ~ 400 mA
>87%, 2.4V in, 3.3V @ 1 ~ 300 mA >85%, 2.4V in, 5V @ 1 ~ 200 mA >82%, 1.2V in, 3.3V @ 1 ~ 150 mA >80%, 1.2V in, 5V @ 10 ~ 100 mA |
| Voltage Out Range |
1.8 ~ 5.2 V
|
| Features |
Low Battery Warning
Over Current Protection Shutdown, Enable, Standby Voltage Reference |
| Switching Frequency |
1 MHz
|
| Standby Current [Typical] |
100 nA
|
| Quiescent Current [Typical] |
9 µA
|
| Component Count + Extras |
5 + 7
|
| Internal Switch |
Yes
|
| Design Author |
STMicroelectronics
|
| Application / Target Market |
Audio: MP3 Players
Cell Phones Digital Cameras Portable Devices |
| Standby Current [Maximum] |
1 µA
|
| Quiescent Current [Maximum] |
12 µA
|
| Main I.C. Base Part |
L6920DB
|
| Date Created By Author | |
| Date Added To Library | 2017-05 |
