MAX17501GTEVKIT#: 12V @ 500mA, 14 ~ 60V in

Summary

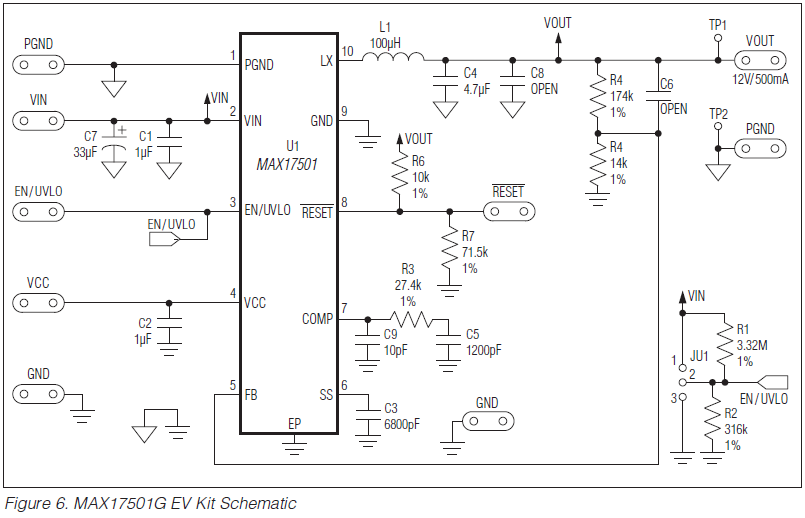

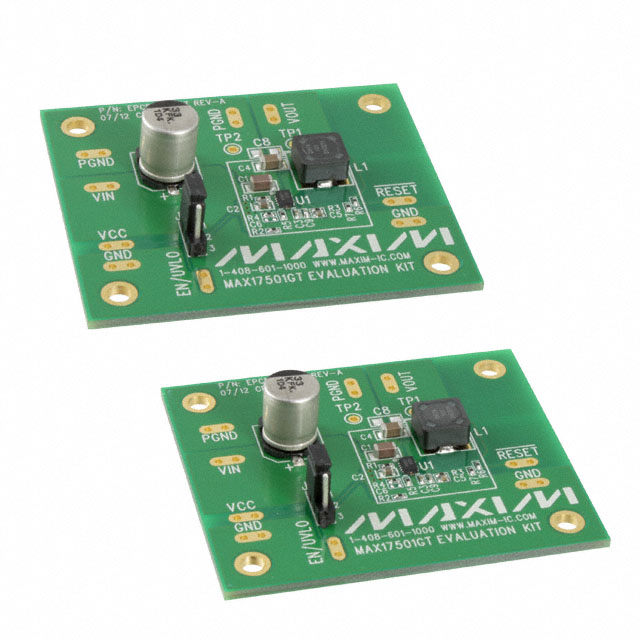

The MAX17501G EV kit provides a proven design to evaluate the MAX17501G high-efficiency, high-voltage, synchronous step-down DC-DC converter. The EV kit generates 12V at load currents up to 500mA from a 14V to 60V input supply. The EV kit features a 600kHz fixed switching frequency for optimum efficiency and component size.

The EV kit features a forced-PWM control scheme that provides constant switchingfrequency operation at all load and line conditions.

The EV kit includes an EN /UVLO PCB pad to enable control of the converter output. An additional /RESET PCB pad is available for monitoring the open-drain logic output. The VCC PCB pad helps measure the internal LDO voltage.

Specifications

Manufacturer	Analog Devices Inc./Maxim Integrated
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Single Output
Eval Board Part Number	MAX17501GTEVKIT#-ND
Eval Board Supplier	Analog Devices Inc./Maxim Integrated
Eval Board	Board not Stocked
Topology	Step Down
Outputs and Type	1 Non-Isolated
Voltage Out: Factory Set	12 V
Current Out	500 mA
Voltage In	14 ~ 60 V

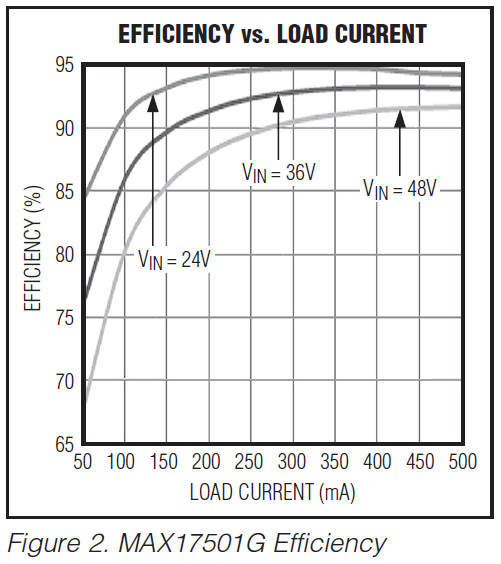

Efficiency @ Conditions	>94%, 24V in, 12V @ 200 ~ 500 mA >92%, 36V in, 12V @ 200 ~ 500 mA >85%, 48V in, 12V @ 150 ~ 500 mA
Voltage Out Range	- Fixed
Features	Electrolytic Free Over Current Protection Power Good Output Pre-Biased Startup Shutdown, Enable, Standby Soft Start Thermal Protection
Switching Frequency	600 kHz
Standby Current [Typical]	900 nA
Quiescent Current [Typical]	4.75 mA
Component Count + Extras	16 + 2
Internal Switch	Yes
Design Author	Maxim Integrated Products
Application / Target Market	Audio: Home Theater Systems Automotive Point of Load (PoL) Portable Devices Telecom
Standby Current [Maximum]	3.5 µA
Quiescent Current [Maximum]	6.75 mA
Main I.C. Base Part	MAX17501G
Date Created By Author	2012-08
Date Added To Library	2017-05
