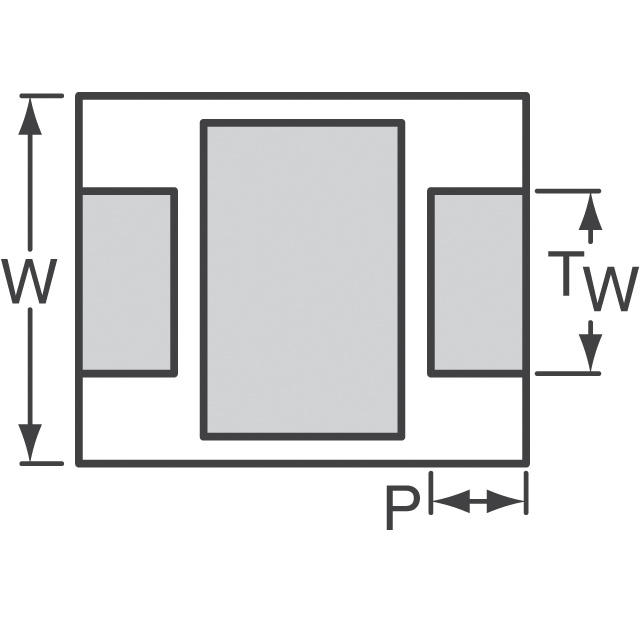

.jpg "6032-28 (EIA)")
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
293D106X9025C2TE3 | ||
|---|---|---|
Digi-Key Part Number | 718-1050-2-ND - Tape & Reel (TR) 718-1050-1-ND - Cut Tape (CT) 718-1050-6-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | 293D106X9025C2TE3 | |
Description | CAP TANT 10UF 10% 25V 2312 | |
Manufacturer Standard Lead Time | 16 Weeks | |
Detailed Description | 10 µF Molded Tantalum Capacitors 25 V 2312 (6032 Metric) 1.5Ohm | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
Capacitance | ||
Tolerance | ±10% | |
Voltage - Rated | 25 V | |
Type | Molded | |
ESR (Equivalent Series Resistance) | 1.5Ohm | |
Operating Temperature | -55°C ~ 125°C | |
Lifetime @ Temp. | - | |
Mounting Type | Surface Mount | |
Package / Case | 2312 (6032 Metric) | |
Size / Dimension | 0.236" L x 0.126" W (6.00mm x 3.20mm) | |
Height - Seated (Max) | 0.110" (2.79mm) | |
Lead Spacing | - | |
Manufacturer Size Code | C | |
Features | General Purpose | |
Failure Rate | - |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | 293D Series Datasheet |
| Product Training Modules | |
| CAD Models | 293D.stp |
| PCN Design/Specification | Adding of Halogen Free Id 23/Dec/2014 |
| HTML Datasheet | 293D Series Datasheet |
| EDA Models | 293D106X9025C2TE3 by Ultra Librarian |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.21.0050 |
73 523 In Stock
All prices are in EUR
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | 0,66000 € | 0,66 € |
| 10 | 0,48900 € | 4,89 € |
| 50 | 0,39160 € | 19,58 € |
| 100 | 0,33570 € | 33,57 € |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 500 | 0,26576 € | 132,88 € |
| 1 000 | 0,22379 € | 223,79 € |
| 2 500 | 0,20980 € | 524,50 € |
| 5 000 | 0,19581 € | 979,05 € |
| 12 500 | 0,18602 € | 2 325,25 € |
| 25 000 | 0,18183 € | 4 545,75 € |
| 50 000 | 0,17833 € | 8 916,50 € |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | Q6936817DY 718-1050-6 718-1050-1 718-1050-2 |
| Standard Package | 500 |
