Name: JWM22RAA
Brand: NKK Switches
SKU: 360-1489-ND
Price: 13.596 EUR
Availability: InStock

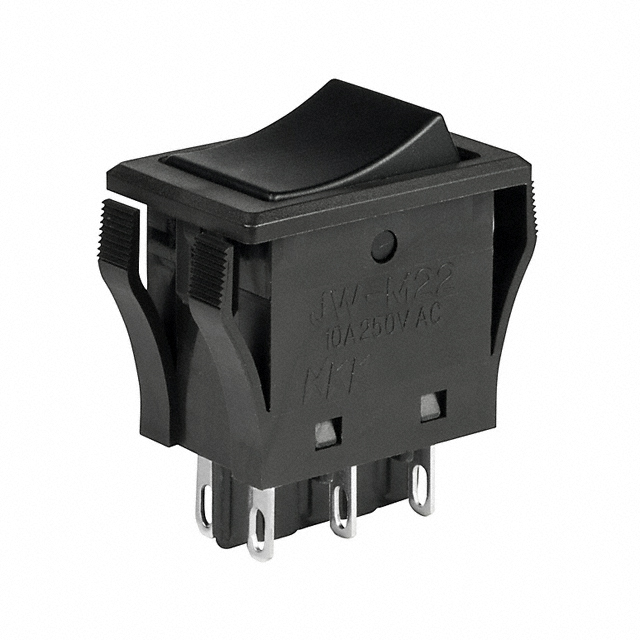

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

JWM22RAA
DigiKey Part Number	360-1489-ND
Manufacturer	NKK Switches
Manufacturer Product Number	JWM22RAA
Description	SWITCH ROCKER DPDT 10A 125V
Manufacturer Standard Lead Time	18 Weeks
Customer Reference
Detailed Description	Rocker Switch DPDT 10A (AC) 125 V Panel Mount, Snap-In
Datasheet	Datasheet
EDA/CAD Models	JWM22RAA Models

Product Attributes

Type	Description	Select All
Category	Switches Rocker Switches
Mfr	NKK Switches
Series	JW
Packaging	Bulk
Part Status	Active
Mounting Type	Panel Mount, Snap-In
Circuit	DPDT
Switch Function	On-On
Current Rating (Amps)	10A (AC)
Voltage Rating - AC	125 V
Actuator Type	Concave (Curved)
Color - Actuator/Cap	Black
Actuator Marking	No Marking
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection	Dust Proof
Features	Epoxy Sealed Terminals
Panel Cutout Dimensions	Rectangular - 24.00mm x 15.40mm
Operating Temperature	-25°C ~ 70°C
Approval Agency	CSA, UL, VDE
Mechanical Life	25,000 Cycles
Electrical Life	25,000 Cycles
Base Product Number	JWM22R
