31-4803
31-4803
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
31-4803
31-4803
31-4803

31-4803

Digi-Key Part Number
ARF1073-ND
Manufacturer
Amphenol RF
Manufacturer Product Number
31-4803
Description
CONN ADAPT JACK-JACK BNC 50 OHM
Manufacturer Standard Lead Time
17 Weeks
Detailed Description
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
Customer Reference
Datasheet Datasheet
Product Attributes
Type
Description
Select All
Category
Mfr
Amphenol RF
Series
-
Package
Bulk
Product Status
Active
Adapter Type
Jack to Jack
Conversion Type
Same Series
Adapter Series
BNC to BNC
Center Gender
Female to Female
Convert From (Adapter End)
BNC Jack, Female Socket
Convert To (Adapter End)
BNC Jack, Female Socket
Impedance
50 Ohms
Style
Straight
Mounting Type
Panel Mount
Mounting Feature
Bulkhead
Fastening Type
Bayonet Lock, Bayonet Lock
Frequency - Max
4 GHz
Ingress Protection
-
Center Contact Plating
Silver
Features
Isolated
Includes
3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material
Brass
Body Finish
Nickel
Center Contact Material
Beryllium Copper
Dielectric Material
Polyphenylene Oxide (PPO)
Mating Cycles
500
Insertion Loss
-
Operating Temperature
-65°C ~ 165°C
Base Product Number
31-480
Documents & Media
Resource TypeLink

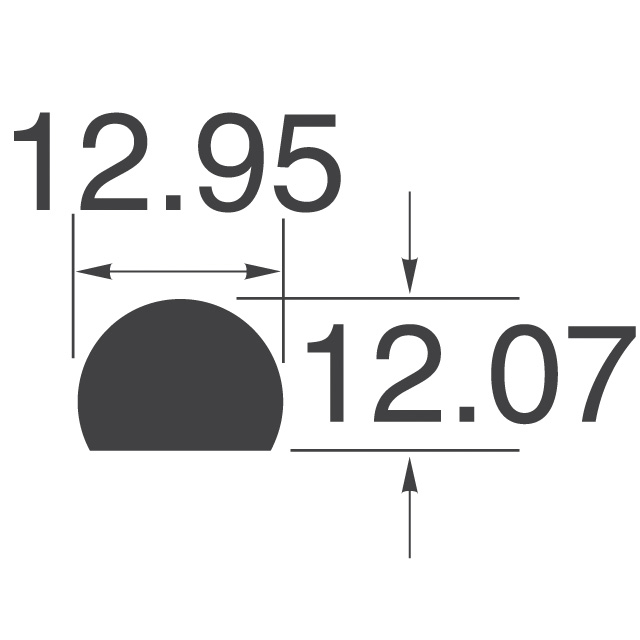

Product Drawings
Environmental & Export Classifications
AttributeDescription
RoHS StatusRoHS Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
ECCNEAR99
HTSUS8536.69.4010
California Prop 65
Warning Information
1 462 In Stock
All prices are in EUR
Bulk
QtyUnit PriceExt Price
114,11000 €14,11 €
1012,50400 €125,04 €
2512,02320 €300,58 €
5011,54240 €577,12 €
10010,90100 €1 090,10 €
2509,93916 €2 484,79 €
5009,29792 €4 648,96 €
1 0008,52844 €8 528,44 €
Manufacturers Standard Package
