Product Highlights > Wireless Connectivity

Wireless Connectivity

Würth Elektronik's wireless connectivity ecosystem enables designers to bring smart, connected products to life quickly and reliably. Spanning Bluetooth®, Wi-Fi®, cellular, Long-Range WAN, Mesh, wireless M Bus, proprietary wireless, and hardware only modules, the portfolio supports a wide range of applications. Each solution is rigorously tested and engineered for seamless integration, global certifications, and industry leading support helping accelerate development while reducing risk in wireless design.

Adrastea-I LTE Module

The Adrastea-I module from Würth Elektronik is a high-performance multiband LTE-M and NB-IoT module with extremely low power consumption. The module features a compact design measuring only 13.4 mm x 14.6 mm x 1.85 mm, integrated GNSS, an embedded Arm® Cortex®-M4, and 1 MB of Flash for user application development.

Proteus-IV Bluetooth® LE 6.0 Module

The Proteus IV is a ready-to-use Bluetooth LE 6.0 module, built on the advanced Nordic nRF54L15 SoC for high performance and fast integration.

Proteus-e Bluetooth® LE 5.1 Module

The Proteus-e radio module from Würth Elektronik is used for wireless communication between devices such as control systems, remote controls, and sensors. It provides fast and secure data transmission between two parties (point-to-point topology) through BLE 5.1.

Proteus-III Radio Modules

Würth Elektronik Proteus-III is a compact Bluetooth® Low Energy (BLE) 5.1 radio module designed for wireless communication between control systems, sensors, and remote controls. It supports secure point-to-point data transmission using configurable firmware, allowing engineers to tailor performance to specific applications.

Proteus-II 5.0 Bluetooth® Smart Module

Würth Elektronik/Amber Wireless' Proteus-II, the Bluetooth low energy (BLE) 5.0 module, can send data packets with higher wireless data rates of 2 Mbit/s. Additionally, the newly developed high throughput mode allows the module to send multiple wireless packets per connection interval and thereby increases the data throughput up to 200 kbit/s.

Proteus-I Bluetooth Smart 4.2 Module BLE

Würth Elektronik's Bluetooth® Smart (previously called Bluetooth Low Energy) technology is a part of the Bluetooth Core Specification from Bluetooth v4.0 onwards. Bluetooth Smart brings Bluetooth wireless connectivity to low cost, small, battery-operated devices that require months or even years of battery lifetime.

Skoll-I Bluetooth® and Bluetooth® LE Radio Module

Skoll-I, a compact wireless module that combines both Bluetooth® Classic and Bluetooth® LE (Low Energy) version 5.4 in a single solution.

Setebos-I Radio Module

Würth Elektronik's Setebos-I is a radio module for wireless communication between devices such as control systems, remote controls, sensor nodes, and others. The radio module operates in the globally available 2.4 GHz license-free band and combines with two radio standards in a single hardware platform.

Stephano-I Radio Module

The Würth Elektronik Stephano-I is a compact radio module designed for IoT applications, combining Wi-Fi and BLE capabilities, allowing low-power connectivity with smart devices.

Calypso Wi-Fi® Radio Module

Würth Elektronik's WLAN module, Calypso, is a compact Wi-Fi module based on IEEE 802.11 b/g/n with a fully featured TCP/IP stack. The edge castellation, smart antenna configuration, and an easy-to-use AT-style command interface enable easy integration into any embedded application.

Cordelia-I Wi-Fi® IoT Module

The Cordelia-I is a compact WLAN radio module based on IEEE 802.11 b/g/n intended to be used as an IoT connectivity sub-module to provide secure cloud connectivity to an embedded system.

Daphnis-I Long-Range-WAN (LoRaWAN)

The Würth Elektronik Daphnis-I radio module is designed for LoRaWAN applications. It operates in the 868 MHz frequency band and supports LoRaWAN classes A, B, and C.

Thadeus Radio Module 434 MHz

Würth Elektronik Thadeus (AMB4426) is a compact, cost-effective radio module for wireless half-duplex communication. Its integrated microprocessor manages packet handling, checksum generation, addressing, channel access monitoring, and retransmission of lost packets for reliable wireless data transfer.

Tarvos-II Radio Module 868 MHz

Würth Elektronik wireless adapter easily connects a PC to a local 868 MHz wireless network via a USB interface. In combination with the relevant radio technology in the end device, this solution enables quick and simple realization of PC supported radio networks and can be used for data collection or control tasks.

Tarvos-III Radio Module 868 MHz

Würth Elektronik Tarvos-III (AMB8826-1) is a compact, ultra-low-power radio module based on the TI CC1310 SoC. Its integrated firmware supports long-range mode, flooding mesh networking, and ready-to-use configuration, making it ideal for flexible and energy-efficient wireless applications.

Thebe-II Radio Module

The Würth Elektronik Thebe-II is a radio module for wireless communication between devices such as control systems, remote controls, sensor nodes, and more.

Telesto-III Radio Module

The Würth Elektronik Telesto-III is a radio module designed for wireless communication between devices like control systems, remote controls, and sensor nodes. Operating in the 915 MHz ISM band, this module offers several radio configurations and address modes.

Themisto-I Radio Module

The Würth Elektronik WIRL-PRO9 Themisto-I radio module is designed for wireless communication between devices like control systems, remote controls, and sensor nodes. Operating in the 915 MHz ISM band with a high transmit power (up to 27 dBm), this module offers several radio configurations and address modes.

Thyone-I Radio Module

The Würth Elektronik Thyone-I is a compact radio module designed for wireless communication between devices such as control systems, remote controls, and sensor nodes. Pre-loaded with WE-ProWare firmware, it offers engineers the flexibility of configuring point-to-point or mesh networks.

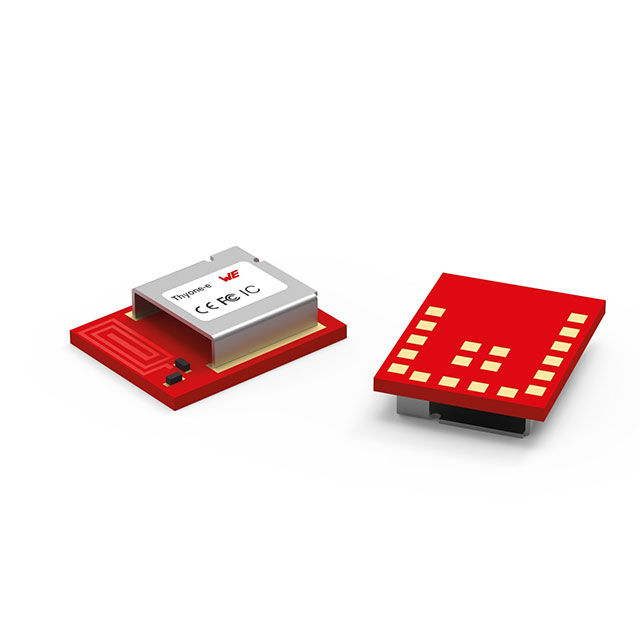

Thyone-e Radio Module 2.4 GHz

Würth Elektronik Thyone-e is a compact 2.4 GHz radio module for IoT, sensors, and M2M systems. With preloaded WE-ProWare firmware and a simple UART interface, it enables fast integration without RF expertise. It supports AES128 encryption, mesh networking, and reliable low-power wireless communication for space constrained embedded applications.

Tarvos-e Radio Module 868 MHz

The Tarvos-e module uses Würth Elektronik’s proprietary WE-ProWare radio protocol and is compatible with Tarvos-III and Thebe-II. It allows targeted optimization of wireless communication – either for high data rates up to 400 kbps or for a range up to 2.7 km.

Titania Radio Module 169 MHz

Würth Elektronik Titania is a compact 169 MHz radio module for reliable long-range wireless communication. With an integrated microcontroller and proprietary software stack, it supports packet handling, addressing, and retransmission, while enabling networks of up to 255 nodes with ranges up to 3 km line-of-sight.

Tarvos-I Radio Module 868 MHz

Würth Elektronik Tarvos-I is a compact sub-GHz radio module for robust long-range wireless communication. Operating in the 868 MHz band, it features preloaded firmware and a transparent UART-to-radio interface for fast integration in industrial control, smart metering, and sensor network applications.

Telesto-II Radio Module 915 MHz FHSS

Würth Elektronik Telesto-II (AMB9626) is a compact, cost-effective radio module for wireless half-duplex communication. Its integrated microprocessor manages packet handling, checksum generation, addressing, channel access monitoring, and retransmission of lost packets for reliable wireless data transfer.

Ophelia-IV Radio Module based on nRF54L15 chipset

The Würth Elektronik Ophelia-IV compact, high-performance wireless module is built on the nRF54L15 SoC, offering flexible multiprotocol support and ultra-low power operation for next-generation IoT designs.

Ophelia-III Radio Module

Würth Elektronik Ophelia-III compact radio modules are designed for wireless communication between devices such as control systems, remote controls, and sensors. Without pre-installed firmware, the Ophelia-III offers engineers the flexibility to integrate proprietary firmware or utilize the Nordic nRF Connect SDK for custom applications like Bluetooth® LE (BLE), Zigbee®, or Thread.

Ophelia-I Radio Module

The Ophelia-I radio module from Würth Elektronik is used for wireless communication between devices such as control systems, remote controls, and sensors. The module is based on Nordic Semiconductor's nRF52805 radio chipset and is a hardware-only module without firmware.

Orthosie-I Radio Module

Würth Elektronik Orthosie-I is a compact radio module designed for wireless communication between devices such as control systems, remote controls, and sensor nodes. Without pre-installed firmware, it offers engineers the flexibility to develop custom applications using the Espressif SDK, supporting protocols like Bluetooth® LE, Wi-Fi, and Matter.

Olis-e Radio Module 868 MHz without firmware

Würth Elektronik Olis-e is a compact 868 MHz radio module for long-range, low-power wireless communication. Based on the TI CC1310 SoC, it enables custom firmware development for proprietary protocols, Wireless M-Bus, IEEE 802.15.4g, MIOTY, and 6LoWPAN in smart metering, buildings, and monitoring applications.

Thetis-I Wirepas™ Mesh Module

Würth Elektronik's WIRL-PRO2, Thetis-I, is a radio module implementing the Wirepas Mesh wireless connectivity stack. The module is meant to be integrated into Wirepas-based routing networks for wireless communication between devices or nodes.

Metis-I Radio Module 868 MHz wM-BUS

Metis-I is an embedded low-cost Wireless wM-Bus radio module, which operates in 12 channels in the 868 MHz frequency band. The integrated protocol controls the entire data communication.

Metis-II Radio Module 868 MHz wMBus

Würth Elektronik Metis-II (AMB8626-M) is a compact wireless M-Bus radio module for metering and monitoring applications. Operating across 12 channels in the 868 MHz band, its integrated protocol stack controls the complete data communication for simple, reliable wireless implementation.

Metis-e Radio Module 868 MHz wM-BUS

Würth Elektronik Metis-e 868MHz wM-Bus Radio Module is a small, cost-optimized device for transmitting meter readings per the wireless M-Bus standard EN 13757-4.
