            TVS Diode Arrays for High Speed Signals - SP0544/SP7538 Series
                    Littelfuse's TVS diode array for protection against electrostatic discharges in high-speed interfaces

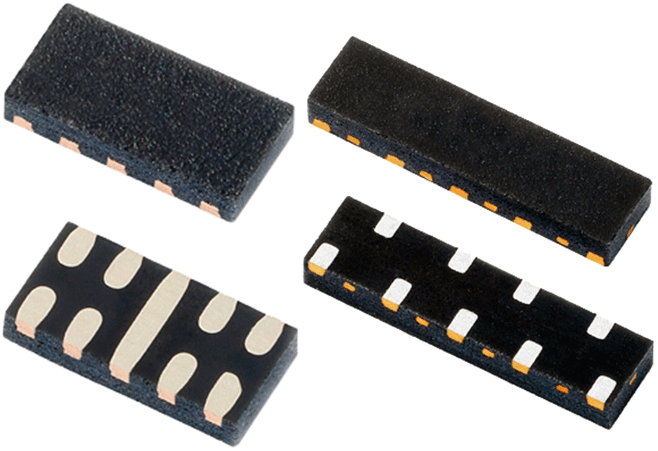

Two series of TVS diode arrays (SPA® diodes) from Littelfuse safeguard high-speed interfaces from damage due to electrostatic discharges (ESD). SP7538P series TVS diode arrays integrate eight channels of ultra-low capacitance rail-to-rail diodes and an additional Zener diode in a µDFN-9 package; SP0544T series TVS diode arrays have a similar design in a smaller µDFN-10, with four channels of ultra-low capacitance rail-to-rail diodes instead of eight. Both can safely absorb repetitive ESD strikes above the maximum level specified in the IEC61000-4-2 international standard (±8 kV contact discharge) without performance degradation. Their extremely low loading capacitance also makes them ideal for protecting high-speed signal pins.

Typical applications for both series include ESD protection for interfaces like V-By-One, Embedded DisplayPort, USB 2.0/3.0 ports, and HDMI, as well as flat panel displays, LCD/LED TVs, smartphones and mobile computing.

Features		Click Here to Download Guide
Low capacitance of 0.5 pF (typ) per I/O Low dynamic resistance of 0.4 Ω Promotes high ESD immunity and superior protection: ESD, IEC 61000-4-2, ±12 kV contact, ±25 kV air discharge; EFT, IEC 61000-4-4, 40 A (5/50 ns): Lightning, IEC 61000-4-5 2nd edit, 4 A (tP = 8/20 μs)
Applications
Reduces signal degradation and distortion for high-speed applications Provides low clamping performance to ensure better protection for sensitive chipsets Permits manufacturers to achieve ESD protection beyond the maximum level stated in the IEC standard and protects against a multitude of other threats to ensure product reliability in the field
