PROFET™+2 12V BTS70012-1ESP Evaluation Board

Infineon Technologies' evaluation board offers quick and easy development driving resistive, inductive, and capacitive loads using the BTS70012-1ESP high-side switch

Infineon's BTS70012-1ESP is a smart high-side power switch that provides protection functions and diagnosis. The product has a capacitive load switching mode implemented to charge capacitive loads and to reduce current peaks during the switch-on of capacitors.

Features
  • High-side switch with diagnosis and embedded protection
  • Capacitive load switching mode
  • Operating voltage range: 3.1 V to 28 V with 3.3 V and 5 V compatible logic input
  • Protection: current tripping, over-temperature, overvoltage, load dump, reverse polarity, short-circuit
  • Diagnosis: load current sense output
  • Optimized for design flexibility across the family by pin-to-pin and external components compatibility
  • Miniaturization / shrink of the PCB area
  • 50% reduced internal operating current consumption
  • Simplified and cost-efficient ground network
  • Current sense accuracy (kILIS) ≤ 8% at nominal load current
  • Benchmark cranking voltage capability able to work down to 3.1 V
  • Smaller package size for area savings
  • Very low output leakage current: ≤0.5 μA up to +85°C
Applications
  • Suitable for driving 31.3 A resistive, inductive, and capacitive loads
  • Replaces electromechanical relays, fuses, and discrete circuits
  • Suitable for driving glow plugs, heating loads, DC motors, and for power distribution

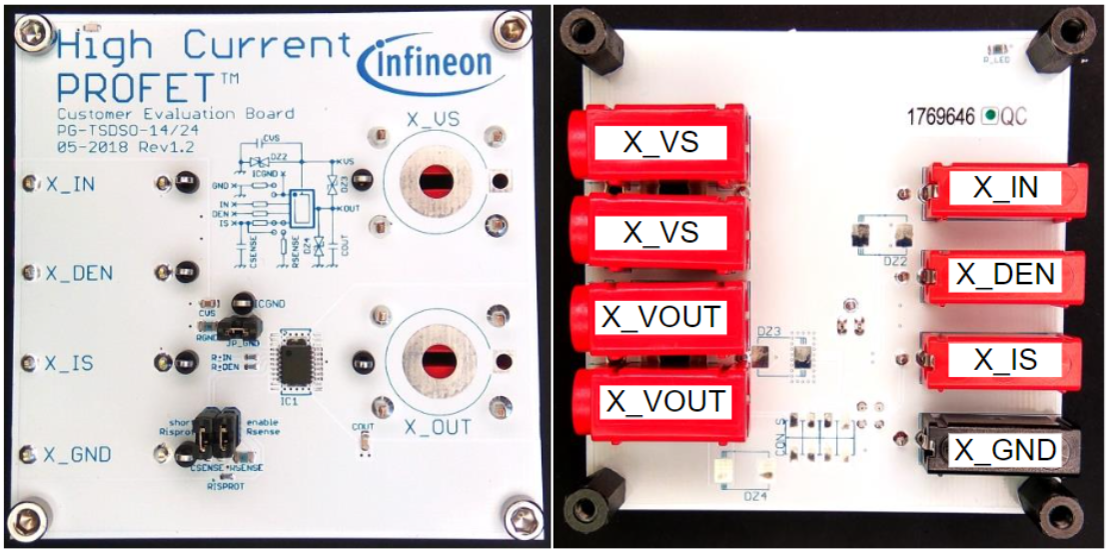

Evaluation Board

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
DAUGHTER BOARDBTS700121ESPDAUGHBDTOBO1DAUGHTER BOARD2 - Immediate$46.61View Details
