F2972 and F2976 SPDT Reflective RF Switches

Product Highlights > F2972 and F2976 SPDT Reflective RF Switches

            F2972 and F2976 SPDT Reflective RF Switches

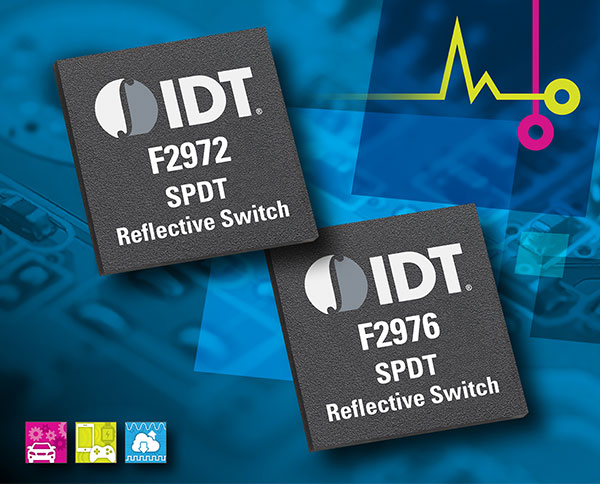

                    Renesas offers the F2972 and F2976 SPDT reflective RF switches with wide frequency range, low distortion, and low insertion loss


Renesas’ F2972 and F2976 are single-pole double-throw (SP2T) reflective RF switches featuring high linearity and wide bandwidth. These devices are optimized from 5 MHz to 1.8 GHz to support downstream cable modem future migration for DOCSIS 3.1 applications, and operate at up to 10 GHz to support a multitude of wireless RF applications. Superb performance is achieved when used in either 50 Ω or 75 Ω terminating impedance applications.

The F2972 and F2976 use a single positive supply voltage of either +3.3 V or +5.0 and are compatible with either 1.8 V or 3.3 V control logic.

Competitive Advantages

Features (75 Ω)

The F2972 and F2976 provide extremely low insertion loss across the entire bandwidth while providing superb distortion performance.

Optimized for DOCSIS 3.1 applications up to 1.8 GHz
Optimized for Wi-Fi applications up to 5.9 GHz
Low insertion loss
High isolation
Fast switching
No external matching required

Typical Applications

Broadband cable DOCSIS 3.0 / 3.1
Set top box
CATV filter bank switching
Wi-Fi
Cellular BTS
General purpose

General Features

Supply voltage: +2.5 V to +5.25 V
1.8 V and 3.3 V compatible control logic
2 mm x 2 mm, 12-pin TQFN package

Low insertion loss:
- 0.23 dB at 204 MHz
- 0.34 dB at 1.8 GHz
High isolation: 40 dB at 1.8 GHz
P 0.1 dB compression of +37 dBm at 204 MHz
Second harmonic: -100 dBc at 204 MHz
Third harmonic: -120 dBc at 204 MHz
Composite second order distortion > 100 dBc
Composite triple beat distortion > 100 dBc

Features (50 Ω)

Low insertion loss:
- 0.40 dB at 2.4 GHz
- 0.55 dB at 8 GHz
High isolation:
- 34 dB at 2.4 GHz
High linearity:
- IIP2 +125 dBm at 2.4 GHz
- IIP3 +77 dBm at 2.4 GHz
P 0.1 dB compression of +40 dBm at 2.4 GHz
Second harmonic: -100 dBc at 2.4 GHz
Third harmonic: -110 dBc at 2.4 GHz
