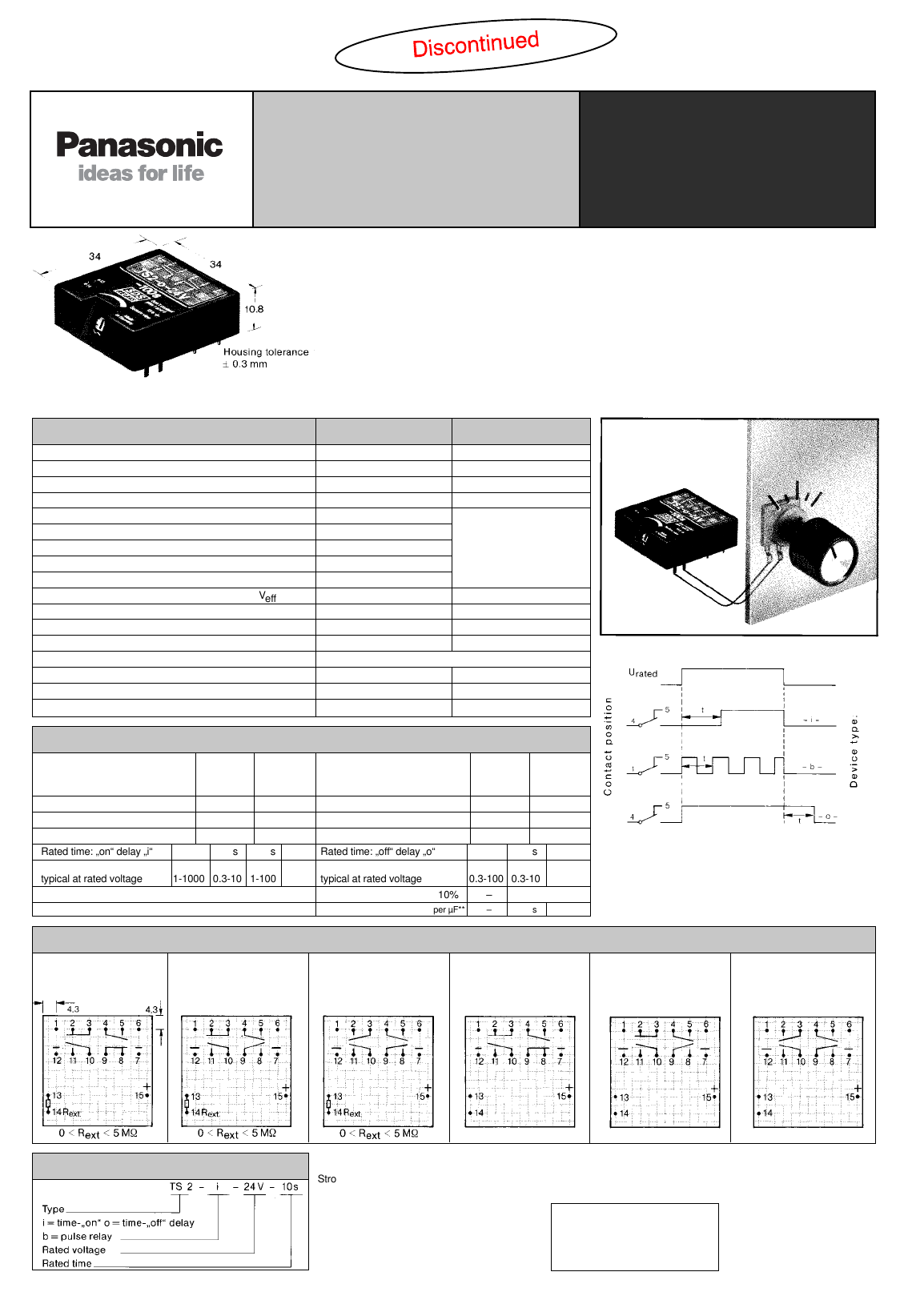

Panasonlc
Nunsmg \olerauce
; u 3 mm
cunnu nosllmn
Device mu
Rahadume on‘de‘ay I“ s s Ra‘edume .mr‘ delay a“ s
rypwca‘anatedvuhage Menu 0340 Han xypmalaua‘edvunage Damn 034a
um 7
new“
1 m ”J
‘23.“; 123456 5 ‘23156 123¢56
.,,,\,.T.,,,\,. . .,,,\,V. .,/,,\,.
:h Pr 7 T A (’1 —. 7 ' 7 T
+ + + + + +
gm .5. gm ‘5. Va ‘5. '13 ‘5. ~13 ‘5. ”a .5.
“Hail {ARM ”Ran M4 ~14 » .H
0, nexusmg 0«’Rex('5M§2 01mm 5M9
SK
rsziyizavi‘io: m
We“?
mummy.
b=pulsere\av
Fa|sdvollage
Fa|edhme
TS-RELAYS
NEW PCB TIME DELAY RELAY
TIME-ON OR TIME-OFF DELAY
OR PULSE RELAY
• The elegant solution to time delay problems.
• High repeat accuracy and reliability.
• Not susceptible to external disturbance.
• Increase in timing delay by using an external capacitor with time-off delay
device – o –.
• No auxiliary power supply required with time-off delay operation.
• No „first cycle effect“, with the time-on delay device. The first and following
operations are of the same duration.
en_ds_61708_0000_300506D
TS
+ The trimmer is omitted on the -i/-o- 0s device.
This must be replaced by an external potentiometer. The
time delay thus achievable is 20s per 100 kΩΩwith the
-i- devices and approx 20s per 1 MΩΩwith the -o- devices.
The minimum time delays are 1s (with -i-) and 0.3 s (with -o-).
* With the -o- 0s device, the pulse frequency is 5 Hz. max.,
and is inversely proportional to Rext(e.g. at 12 kΩΩthe pulse
frequency is 1 Hz).
** Connect Cext between pins 12 and 13!
Note:
Excitation voltage ripple should be maintained below 5% by use of appropriate smoothing.
Strong external magnetic fields influence relay data.
1) Data concerning operational life is based on resistive loads and ambient temperature of 20-30°C.
TR-W Wiping function on request With surge voltages
(1.2/50µsec) over DC 500V
TS-i. b. w relays may not
operate as intended.
Characteristics Remarks
Operation
Contact arrangement
Max. make/rated/break current A
Voltage switching range V
Power switching range W (VA)
Contact material
Volumetric/contact resistancemΩΩ
Operational life 1)
5 A, 1000 VA/ 5 A, 100 W switching ops.
4 A, 1000 VA/ 0.1 A, 1 W switching ops.
Voltage withstand: cont./cont.- control circuitryVeff
Insulation resistance: cont./cont.- control circuitry ΩΩ
Shock-, vibration resistance g, g/Hz
Life of trimmer
Type of protection Potentiometer/Contacts
Storage temperature °C
Permiss. ambient temp. at max. load °C
Min. control pulse duration at rated voltage. ms
20 / 5 / 5
10-5-250
10-10-100 (1000)
AuAg10
30 / 10
6 ·104/ 3 · 105
105/ 2 · 108
750 / 1500
1013/10
10
50, 20 / 1000
>100 operations
-20 / +85
-20 / +65
100
dust tight / IP50
See also the
S relay data sheet
Independant of position
Typically 1000 ops.
Consequently, time tol.: < 4% with
-i- devices 25 % with -0- devices
Operating characteristics
Type: – i – ”on“ delay
– b – pulse relay
TS2-/TS3-/TS4 – i / – b – 5 V
TS2-/TS3-/TS4 – i / – b – 12 V
TS2-/TS3-/TS4 – i / – b – 24 V
Rated time: „on“ delay „i“ 0 s +)10s 100s 800s
Minimum timing range [s]
typical at rated voltage 1-1000 0.3-10 1-100 8-800
Time tolerance at Urated ± 10% < 1%
pulse relay „b“ pulse frequency 0.04 … 5 Hz*
Operating
voltage
V
4.0 – 9.0
8.5 – 18.0
17.0 – 30.0
Current
consumpt.
mA
40
20
11
Type: – o – ”off“ delay
TS2-/TS3-/TS4 – o – 5 V
TS2-/TS3-/TS4 – o – 12 V
TS2-/TS3-/TS4 – o – 24 V
Rated time: „off“ delay „o“ 0 s +) 10 s 100 s
Minimum timing range [s]
typical at rated voltage 0.3-100 0.3-10 1-100
Time tolerance at Urated ± 10% – approx 20%
Time delay increase with Cext per µF** – 1.5s 4.7 s
Operating
voltage
V
4.0 – 9.0
8.5 – 18.0
18.0 – 28.0
Current
consumpt.
mA
31
23
23
Connection diagrams (bottom view) Warning! No reverse battery protection
Ordering example
TS2–i, –o– or –b
– 5, 12, 24 V
– 0 s
TS3–i, –o– or –b
– 5, 12, 24 V
– 0 s
TS4–i, –o– or –b
– 5, 12, 24 V
– 0 s
TS2–i, –o– or –b
– 5, 12, 24 V
– 10 s or – 100 s
– i – 800 s, – b – 25 s
TS3–i, –o– or –b
– 5, 12, 24 V
– 10 s or – 100 s
– i–800s, –b–25 s
TS4–i, –o– or –b
– 5, 12, 24 V
– 10 s or – 100 s
– i – 800 s, – b – 25 s
(NO = normally open, NC = normally
closed, CO = changeover)
2NO2NC (2CO)/3NO1NC
(2NO1CO)/4NO
Warning! pins 1 and 6 may not be connected.
Pins 7 and 12 are negative and connected internally
Approx. 15 g
Housing material: CRASTIN SK-615 FR Polycarbonate
Basic grid 2.54 mm
PCB hole dia. 1.3 mm ± 0.1 mm
Please initialise relays required state whenever power is turned on. The
statements for latching relays in our General Application Guidelines are
applicable.
